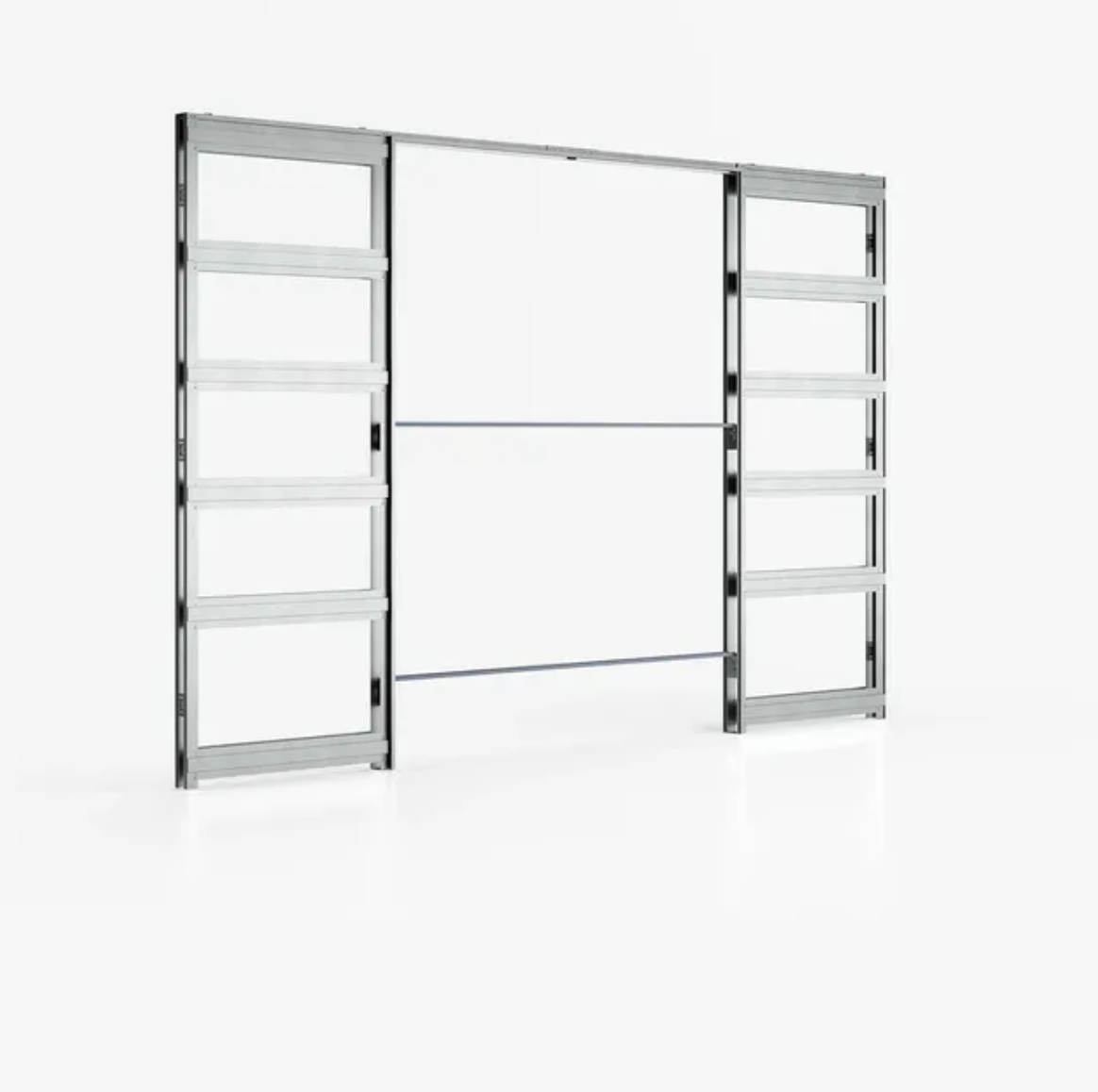

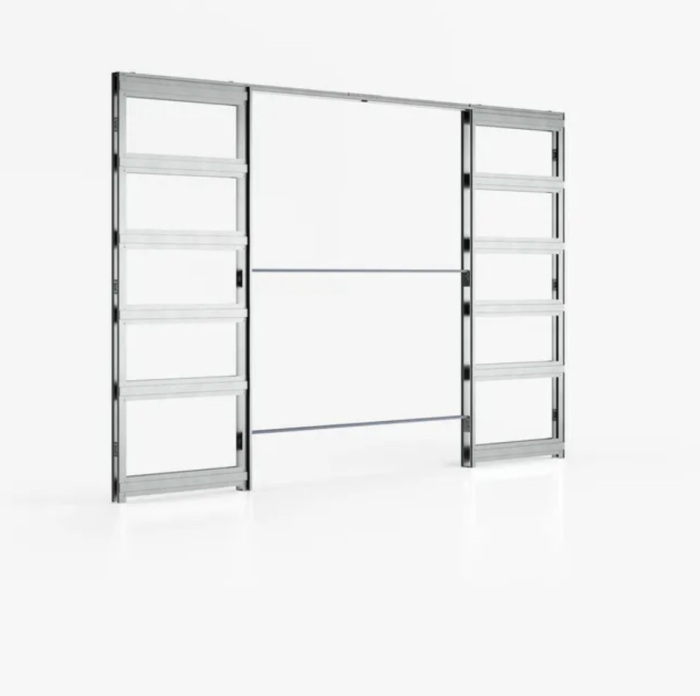

Sliding double pocket door kit EvoKit suited to 10 cm walls

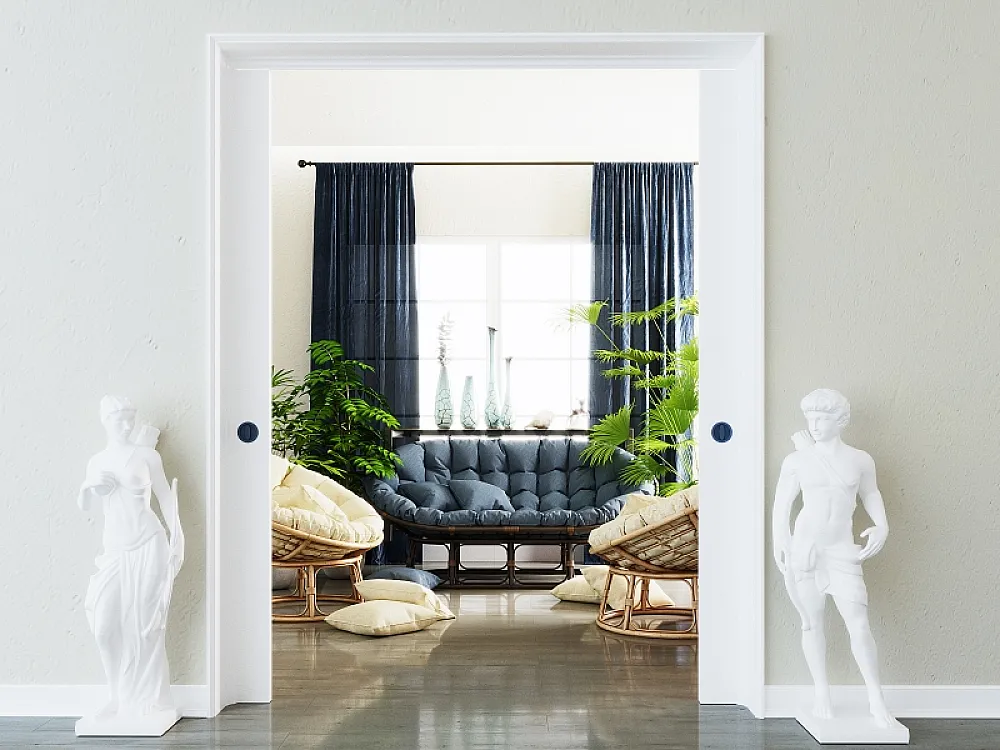

The sliding door system EvoKit is a Do-It-Yourself system that must be assembled before placing it in the wall construction. The pocket frame is suitable for double door panels, ideal for creating a room en suite by example. The system is easy to be build in walls made with a metal stud or wooden construction and to be finished with plasterboard of 12,5 mm thickness The special hanging kits (included) with ball bearings allow a silent and fluent movement of the sliding door panels. DIY pocket frame Evo Kit Doppio is suitable for plasterboard walls with a thickness of both 100 mm and 125 mm for door heights up to 230 cm. Sliding door systems with a height above 230 cm are only suitable for a finished wall thickness of 12,5 cm.

Need a special door wide?

Up to a door height of 210 cm, this system is also available in door widths 130 cm (2×65 cm), 150 cm (2×75 cm), 170 cm (2×85 cm) and 190 cm (2×95 cm). NOTE:

• The pocket frame comes withouta  sliding door, door jamb and covering profile (architrave)

Extra technical information:

• Suitable for door panels with a weight up to 100 Kg
• For systems with a PF100 it is recommended to use a door panel of max. 42 mm thick.
• To get the correct firmness, it is advisable to finish the frame with whole plasterboards of 12,5 mm thickness
