Single sliding door system Evolution suited to 10 cm walls
£486.67 – £871.93

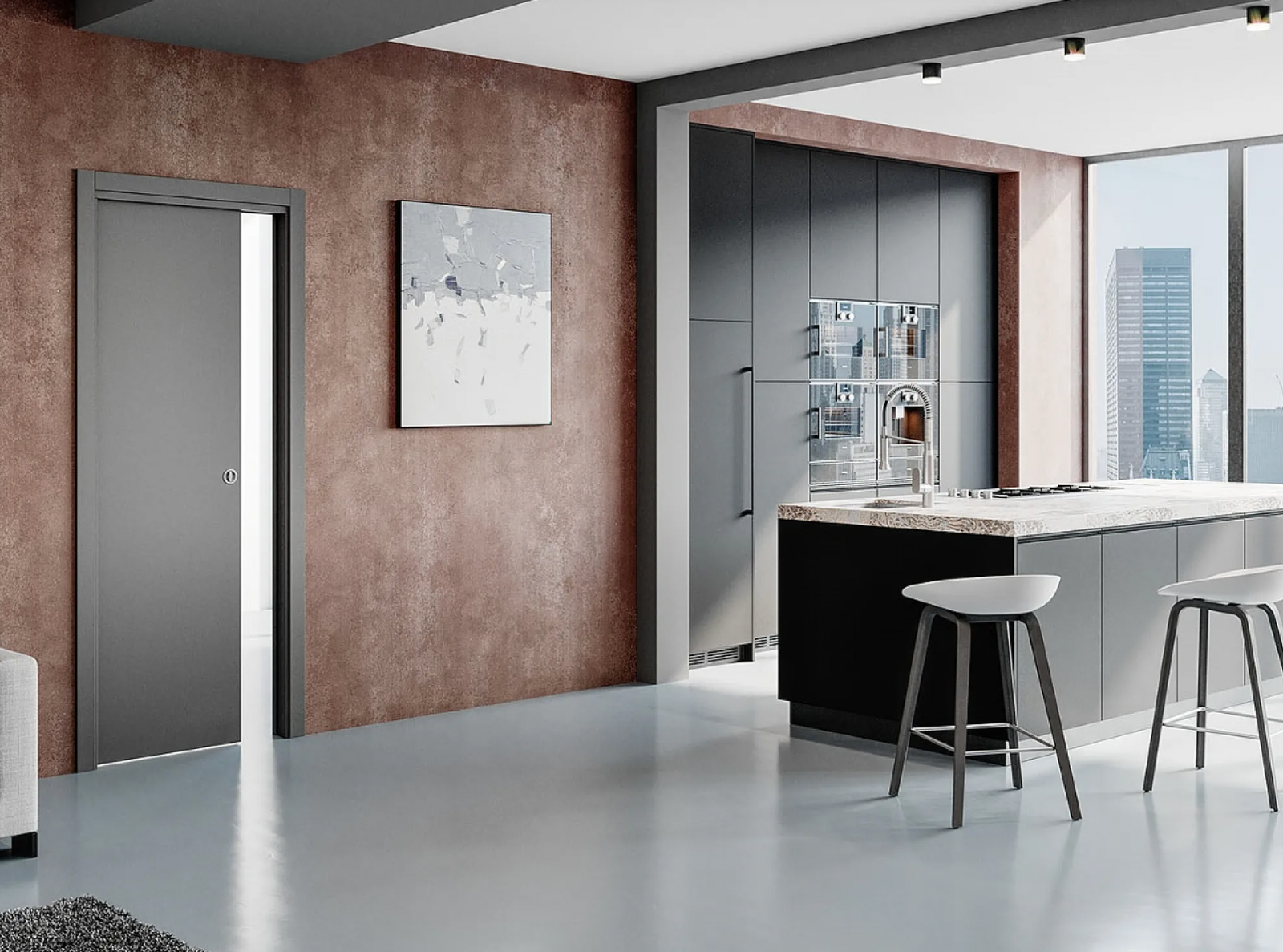

SELECTION TOOLThe sliding door system Evolution Singolo is a ready to use pocket frame for one sliding door. The pocket frame is easy to build in a metal stud frame or a wooden frame construction. To be finished with plasterboard.
The firmness of the pocket frame is thanks to the high quality metal frame with a special corrugated profile. This superior engineering together with the hanging kit wit self lubricating bearings, will give you years of trouble free silent and silky smooth movement for any standard size door panel.
NOTE:
The pocket frame comes without sliding door panel
Suggestion: For a nice finish, but also as a protection for the build-in pocket frame, we suggest a doorpost. Ofcourse you can make this by yourself, but to make it easy, we also have a ready-made-kit. Do you prefer to make a doorpost by your own or isn’t there a doorpost kit available for the size of the pocket frame you need? We also sell the brush strips and gaskets seperatly.
Extra technical information:
- Available for 3 different wall thicknesses; 100 mm (PF100), 125 mm (PF125) and 145 mm (PF145)
- The hanging kit suppied is suitable for a door panel with a weight upto 120 Kg.
- To get the right firmness, it is recommended to use whole plasterboards of 12,5 mm
- Maximum thickness of the door panel 42 mm
- This system is available upto 3 meters for wall thickness 12,5 cm and 14,5 cm (prices on request)
| Door opening width |
60 cm ,70 cm ,80 cm ,90 cm ,100 cm ,110 cm ,120 cm ,130 cm ,140 cm ,150 cm |
|---|---|
| Door height |
200 cm ,210 cm ,220 cm ,230 cm ,240 cm ,250 cm ,260 cm ,270 cm |
